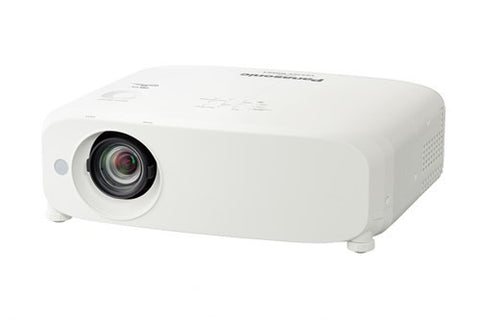

Panasonic VW530 Widescreen Projector
Power supply | AC 100–240 V, 50/60 Hz (other countries) | |
Power consumption | 362 W | |
Standby power consumption | Standby Mode (Eco)*1 | 0.4 W |
Standby Mode (Normal) | 8W | |
LCD panel | Panel Size | 0.59 inches (1.50 cm) (16:10 aspect ratio) |
Display Method | Transparent LCD panel (× 3, R/G/B) | |
Pixels | 1,024,000 (1,280 × 800) × 3, total of 3,072,000 pixels | |
Lens | 1.6x manual zoom (throw ratio: 1.2–1.9:1), manual focus F 1.60–1.90, f 15.31–24.64 mm | |
Lamp | 270 W UHM lamp × 1 | |
Screen size (diagonal) | 30–300 inches | |
Brightness*2 | 5,000 lm (ANSI) (input signal: PC, lamp power: Normal, picture mode: Dynamic) | |
Center-to-corner uniformity*2 | 85% | |
Contrast*2 | 10,000:1 (all white/all black) (input signal: PC, lamp power: Normal, picture mode: Dynamic, Iris: on) | |
Resolution | 1,280 × 800 pixels (Input signals that exceed this resolution will be converted to 1,280 × 800 pixels.) | |
Scanning frequency | HDMI | 525i (480i)*3, 625i (576i)*3, 525p (480p), 625p (576p), 750 (720)/60p, 750 (720)/50p, 1125 (1080)/24p, 1125 (1080)/24sF, 1125 (1080)/25p, 1125 (1080)/30p, 1125 (1080)/60p, 1125 (1080)/50p, 1125 (1080)/60i, 1125 (1080)/50i Displayable resolution: VGA to WUXGA (non-interlace), Dot clock frequency: 25 MHz to 162 MHz |
RGB (analog) | fH: 15 kHz – 91 kHz, fV: 24 Hz – 100 Hz, dot clock: 162 MHz or lower | |
YPBPR(YCBCR) | fH: 15.73 kHz, fV: 59.94 Hz [525i (480i)] fH: 15.63 kHz, fV: 50 Hz [625i (576i)] fH: 31.47 kHz, fV: 59.94 Hz [525p (480p)] fH: 31.25 kHz, fV: 50 Hz [625p (576p)] fH: 45.00 kHz, fV: 60 Hz [750 (720)/60p] fH: 37.50 kHz, fV: 50 Hz [750 (720)/50p] fH: 33.75 kHz, fV: 60 Hz [1125 (1080)/60i] fH: 28.13 kHz, fV: 50 Hz [1125 (1080)/50i] fH: 28.13 kHz, fV: 25 Hz [1125 (1080)/25p] fH: 27.00 kHz, fV: 24 Hz [1125 (1080)/24p] fH: 27.00 kHz, fV: 48 Hz [1125 (1080)/24sF] fH: 33.75 kHz, fV: 30 Hz [1125 (1080)/30p] fH: 67.50 kHz, fV: 60 Hz [1125 (1080)/60p] fH: 56.25 kHz, fV: 50 Hz [1125 (1080)/50p] |
|
Video/S-Video | fH: 15.73 kHz/15.63 kHz, fV: 59.94 Hz/50 Hz (NTSC/NTSC4.43/PAL/PAL60/PAL-N/PAL-M/SECAM) | |
Optical axis shift | Vertical 0–+48% from center of screen (manual), U/D ratio on top end: 49:1 | |
Keystone correction range | Vertical: maximum ±35° (auto/manual, input: WXGA), Horizontal: maximum ±35° (manual, input: WXGA) |
|
Installation | Front ceiling / Front desk / Rear ceiling / Rear desk | |

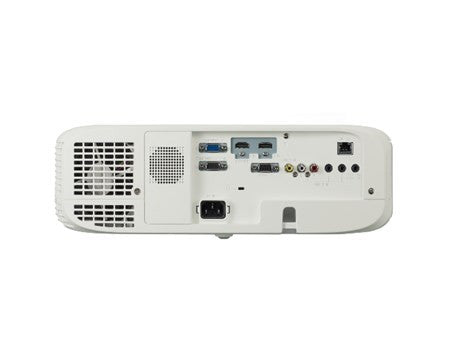

Terminals | HDMI IN: HDMI 19-pin × 2 (Deep Color, compatible with HDCP), audio signal: Linear PCM [sampling frequency: 48 kHz/44.1 kHz/32 kHz] COMPUTER IN 1: D-sub 15-pin (female) x 1 (RGB/Y • PB (CB) • PR (CR)/S-Video) COMPUTER IN 2/MONITOR OUT: D-sub 15-pin (female) x 1 (RGB/Y • PB (CB) • PR (CR) (input/output switching)) VIDEO IN: Pin jack x 1 AUDIO IN 1: M3 jack (L/R) x 1 AUDIO IN 2: M3 jack (L/R) x 1, compatible with MIC input AUDIO IN 3: Pin jack (L/R) x 1 AUDIO OUT: M3 jack (L/R) x 1 (monitor out: variable) SERIAL IN: D-sub 9-pin (female) x 1 for external control (RS-232C compliant) LAN: RJ-45 × 1 for network connection, 10Base-T/ 100Base-TX, compatible with PJLink™ |
|
Built-in speaker | 4.0 cm round shape × 1, output power: 10 W (monaural) | |
Operating noise*2 | 37 dB (lamp power: Normal), 29 dB (lamp power: Eco) | |
Cabinet materials | Molded plastic | |
Dimensions (W × H × D) | 389 × 125*5 × 332 mm (15-5/16 × 4-29/32*5 × 13-1/16 in) |
|
Weight*4 | Approximately 4.8 kg (10.6 lbs) | |
Operating environment | Operating temperature: 0 °C–40 °C (32 °F–104 °F)*6 (altitude: less than 1200 m), 0 °C–30 °C (32 °F–86 °F) (altitude: 1200 m–2,700 m) Operating humidity: 20 %–80 % (no condensation) |
|
Supplied accessories | Wireless remote control unit × 1, Power cord with power cord holder x 1 (x 2 for UK and Asia), Software CD-ROM × 1 (Operating instructions, Multi Projector Monitoring and Control Software, Logo Transfer Software, Wireless Manager ME 6.2 software [PT-VZ575N/VW535N/VX605N only]), Batteries (AAA type × 2), RGB cable, Lens cap x 1 | |
NOTE | *1 When the Standby Mode is set to Eco, network functions such as Power On via LAN will not operate. Also, only certain commands can be received for external control using the serial terminal. *2 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards. *3 Pixel-repetition signal (dot clock frequency: 27.0 MHz) only. *4 Average value. May differ depending on the actual unit. *5 With legs at shortest position. *6 When operating temperature is between 35 °C and 40 °C, lamp power automatically switches to Eco in order to protect the projector. |
